Rotel RCD-965BX: Selective Recap and Laser Calibration

--- The Rotel RCD-965BX is one of the more respected budget CD players of the early 1990s. Built around the Philips CDM4/19 transport and a Rotel-sourced XRS534A output stage, it earned a reputation for being musically forgiving particularly on the harshly mastered early digital recordings that plagued the era. Units are plentiful, inexpensive, and genuinely worth restoring. This one was never looked for. We were on our way to a local library book sale when we stumbled across an estate sale no plan, no list, just a detour. In a damp basement, alongside an Adcom GFA-535 amplifier destined for its own restoration, sat this RCD-965BX. It powered on and played discs, which made it immediately interesting. It had never been opened or serviced, which made it a candidate for the daily transport role it now fills. A damp basement over the course of 30 years is not kind to rubber belts, drive gears, or electrolytic capacitors. The unit worked, but putting it into daily use without addressing those known failure points would have been shortsighted. A selective recap, transport service, and laser recalibration were in order. ---

The Philosophy: Selective Recap A common approach to vintage CD player restoration is a full capacitor replacement every electrolytic on the board, replaced wholesale. For a unit like the RCD-965BX that approach misunderstands what actually fails with age. The majority of capacitors in a CD player are film or ceramic type components that do not meaningfully degrade over time under normal operating conditions. The servo loop filter capacitors, the coupling caps in the digital section, the RF circuit bypasses these are film or ceramic, and replacing them proactively adds nothing while introducing unnecessary risk to 30 year old pads and traces.

Electrolytic capacitors are the ones that age. They lose capacitance, increase in ESR, and eventually fail. In the RCD-965BX the electrolytics worth targeting are few and specific.

The selective approach targets only the components most likely to cause audible degradation or mechanical failure: Audio output coupling capacitors these sit directly in the signal path and have the greatest sonic impact when they drift

Tray motor capacitor mechanical reliability Transport belt and drive gear the most common failure point on any CDM4/19 mechanism. Everything else was assessed, confirmed in-spec, and left in place. ---

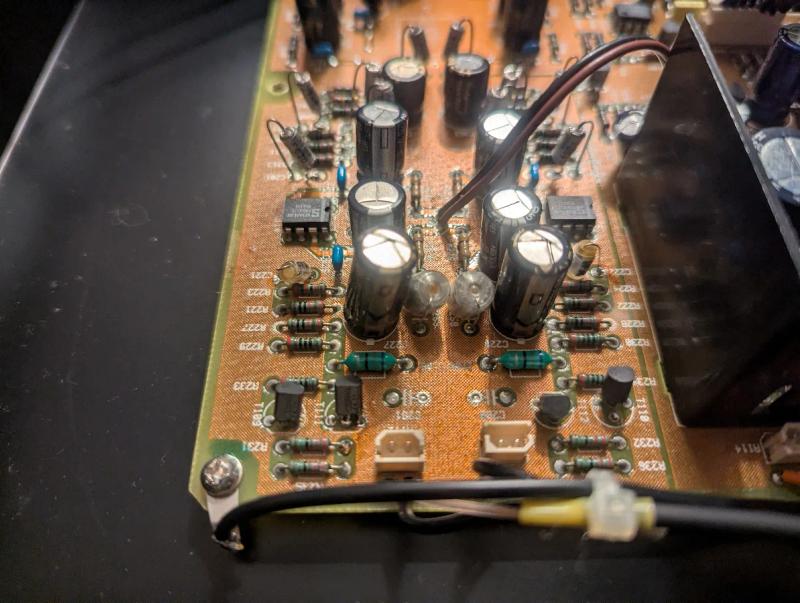

Capacitors Replaced C227 and C228 100µF/25V (Left and Right Audio Output Coupling) These are the most important capacitors on the board from an audio standpoint. They sit at the output of the XRS534A op-amp stage and couple the audio signal to the RCA output jacks. After 30 years, electrolytic capacitors in this position drift in capacitance and increase in equivalent series resistance (ESR), rolling off low-frequency extension and adding a veiled quality to the sound.

Both were replaced with Panasonic EEU-FR1E101B 100µF/25V, 105°C rated, FR series. The FR series is a long-life, low-ESR part well suited to audio coupling positions.

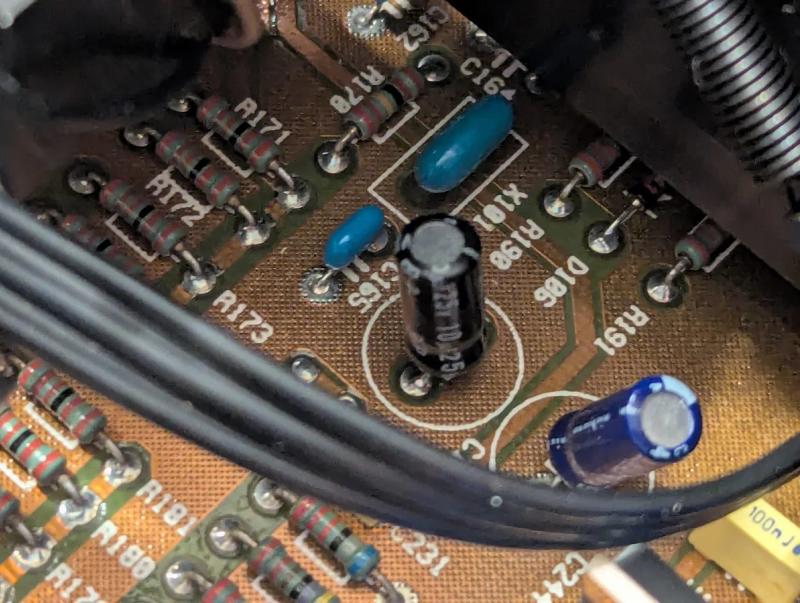

C166 10µF/25V 85°C, (Tray Motor Area) The original cap in this position was marked BP bipolar, meaning non-polarized. This is correct for a motor drive circuit where the voltage across the capacitor can reverse depending on motor direction. A standard polarized electrolytic would be incorrect here. The replacement was installed with no polarity concern, as bipolar caps are orientation-independent.

--- Transport Service: Belt and Drive Gear

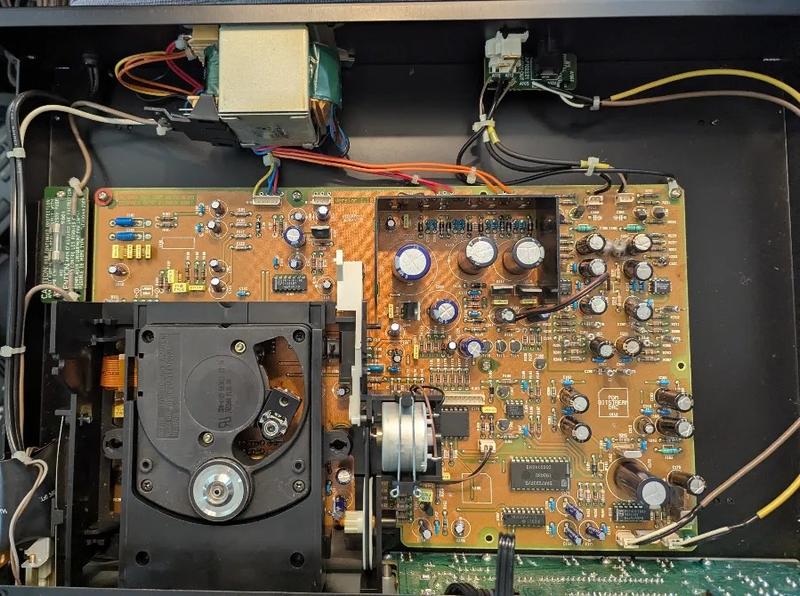

Board Removal The Hidden Screw Before any internal work can begin, the main board must be lifted out of the chassis. This is where the RCD-965BX has its first undocumented gotcha: there is a screw on the underside of the unit hidden directly beneath the left rubber foot. The foot must be removed to reveal it. Miss this screw and the board will not lift cleanly don't force it. With all screws accounted for the board lifts free and provides full access to both the capacitors and the transport mounting hardware.

Accessing the Tray Mechanism

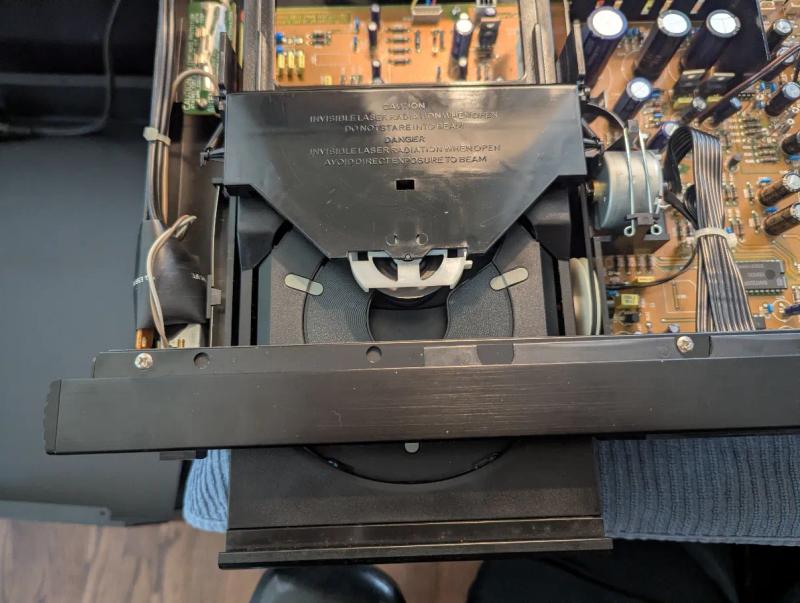

Remove the top and bottom screws from the front face assembly. Once this is removed you will loosen the chassis front mounting bracket and free the springs to the CD tray. Pulling forward on the tray you will get about 90% extended, shift the silver front mounting upwards and the CD tray will clear coming completely out. Keep everything together the best you can.

With the cd tray and board free, the transport mounting screws are accessible from the underside of the board. Once removed, the CDM4/19 assembly is released from the board. The front metal bracket that retains the tray bezel is secured by two screws on the front face. Loosening these and lifting the bracket up releases the tray assembly, which then slides forward out of the chassis. The mechanism is straightforward to handle from there.

Belt Replacement The tray loading belt on the CDM4/19 is a small square-section rubber belt that drives the loading gear from the motor. After 30 years rubber hardens, loses elasticity, and stretches causing the tray to move sluggishly, fail to fully eject, or not load discs reliably. Replacement is a direct swap requiring no tools beyond a pair of tweezers to route the new belt around the motor pulley.

Drive Gear Replacement The plastic drive gear that meshes with the tray rack is a known failure point on CDM4/19 mechanisms. The original plastic softens and becomes sticky with age, and the gear teeth can crack or strip. The replacement gear is available as a kit alongside the belt from several eBay suppliers for under $15. Installation requires removing the old gear from its shaft it simply pulls off and pressing the new one into place. The belt is routed around the gear and motor pulley simultaneously. ---

Laser Calibration

Background The RCD-965BX uses the Philips CDM4/19 transport with an adjustable laser current trim pot, VR302, located on the HQ301B main board and labeled LASER 50mV. The service manual alignment procedure specifies connecting a DMM across R115 in DC voltage mode and adjusting VR302 until the reading stabilizes at 50mV ±2mV with a disc playing. The 50mV specification assumes a laser diode in new or near-new condition. An aged diode produces less optical output at the same drive current and requires more current to achieve equivalent read performance.

Physical Access to VR302 VR302 is a hex trimmer potentiometer mounted on the HQ301B board beneath the transport assembly. With the transport in its normal installed position, access is limited a slightly undersized hex wrench inserted at an angle will reach the trimmer, but precise adjustment is difficult. For accurate calibration, full access requires lifting the board from the chassis and removing the transport mounting screws to raise the transport, bringing VR302 into direct unobstructed access. For a first-pass adjustment the angled approach works. For fine calibration, take the extra steps.

What We Found This unit arrived with VR302 set to produce 151mV across R115 the factory calibration for this specific, never-previously-opened laser at its current state of aging. The unit was playing all discs reliably at this setting. Following the service manual specification, we reduced the laser current to 56mV the lowest point at which the disc continued to spin and track. This extended the laser diode's remaining operating life but left virtually no read margin. Several clean, commercial pressed CDs failed to read reliably at this setting.

After reinstalling the transport following cap replacement, the unit was recalibrated to 88mV the lowest point at which all test discs read consistently and TOC acquisition occurred in under 2 seconds. This is the correct operating point for this laser at its current age: meaningfully lower than the original 151mV, reducing thermal stress on the diode while preserving full read reliability.

Lesson The service manual laser alignment spec is a starting point for a new laser, not an absolute target. The correct calibration for an aged unit is the lowest current at which all discs read reliably not the lowest the diode will track at all, and not a specification written for a component that was new 30 years ago. ---

Objective Lens Cleaning The CDM4/19 objective lens accumulates outgassing residue and airborne contamination over decades. A single application of lens cleaning fluid on a foam swab, followed by a light circular wipe and full evaporation before power-on, restored read margin noticeably. This step should be considered standard procedure on any CDM4/19 service regardless of age. ---

Result Following selective recap, belt and gear replacement, lens cleaning, and laser recalibration to 88mV, the RCD-965BX reads all test discs with TOC acquisition in under 2 seconds and plays without error. Audio output through both channels is confirmed clean.

The unit is closed, calibrated, and ready for another decade of service. Now residing in our main stack, it is a great sounding player.
