Kenwood KR-3130 Restoration Part 1: What We Found Inside a $20 Vintage Receiver

KENWOOD KR-3130

Restoration Journal

The complete story of restoring a $20 junk receiver

⚠️

Important Notice: This document records our personal restoration journey for educational and archival purposes only. It is not a guide, tutorial, or instruction for others to follow. Vintage electronics and mains-connected equipment contain lethal voltages capable of causing serious injury or death. Capacitors can hold dangerous charge even when unplugged. All work on vintage electronics must be performed only by qualified professionals. We accept no responsibility whatsoever for any outcome arising from any attempt to replicate what is described here.

Contents

Part One · First Look — What We Found

Part Two · Exterior Cleaning

Part Three · The Variac Bring-Up

Part Four · The Lamp Mystery Solved

Part Five · Reading the Boards in Situ

Part Six · The Service Manual Changes Everything

Part Seven · Board Cleaning and Discharge

Part Eight · How It Ends — For Now

transfertunes.com·Vintage Audio Restoration·March 2026

The Twenty Dollar Gamble

We are suckers for vintage audio. There is no more honest way to put it. When a local junk mans stack has a Kenwood KR-3130 — a solid-state AM/FM stereo receiver from approximately 1971 — dusty, smoke-worn, and carrying that specific smell of a home where someone smoked for decades, we hand over twenty dollars.

In hindsight, five dollars would have been appropriate given the parts and time this project ultimately required. But we had not done the math yet, and the receiver was sitting there being the kind of thing that you just cannot walk away from when you are a sucker for vintage audio.

No history. No documentation. Unknown electrical status. Questionable storage conditions. Had it been in a damp basement? Had it been soaking in water at some point? Had a capacitor already gone up in smoke somewhere inside that chassis? The answer to all of these questions at the moment of purchase was: we did not know yet.

This is the journal of finding out.

PART 1

FIRST LOOK — WHAT WE FOUND

Getting the Cover Off

The KR-3130 cover is held by six screws: two on the left side panel, two on the right side panel, and two along the top rear edge. All six out and the cover slides straight back about two inches, then lifts away. Simple enough. Set the cover on a clean towel on a separate table.

The rear fuse is the twist-cap type at the back of the unit. Unscrew it, pull the fuse. Ours was intact and rated at 2 amps slow-blow, which is correct for the US unit per the service manual. Someone had at least installed the right fuse — a decent start.

What the Inside Looked Like

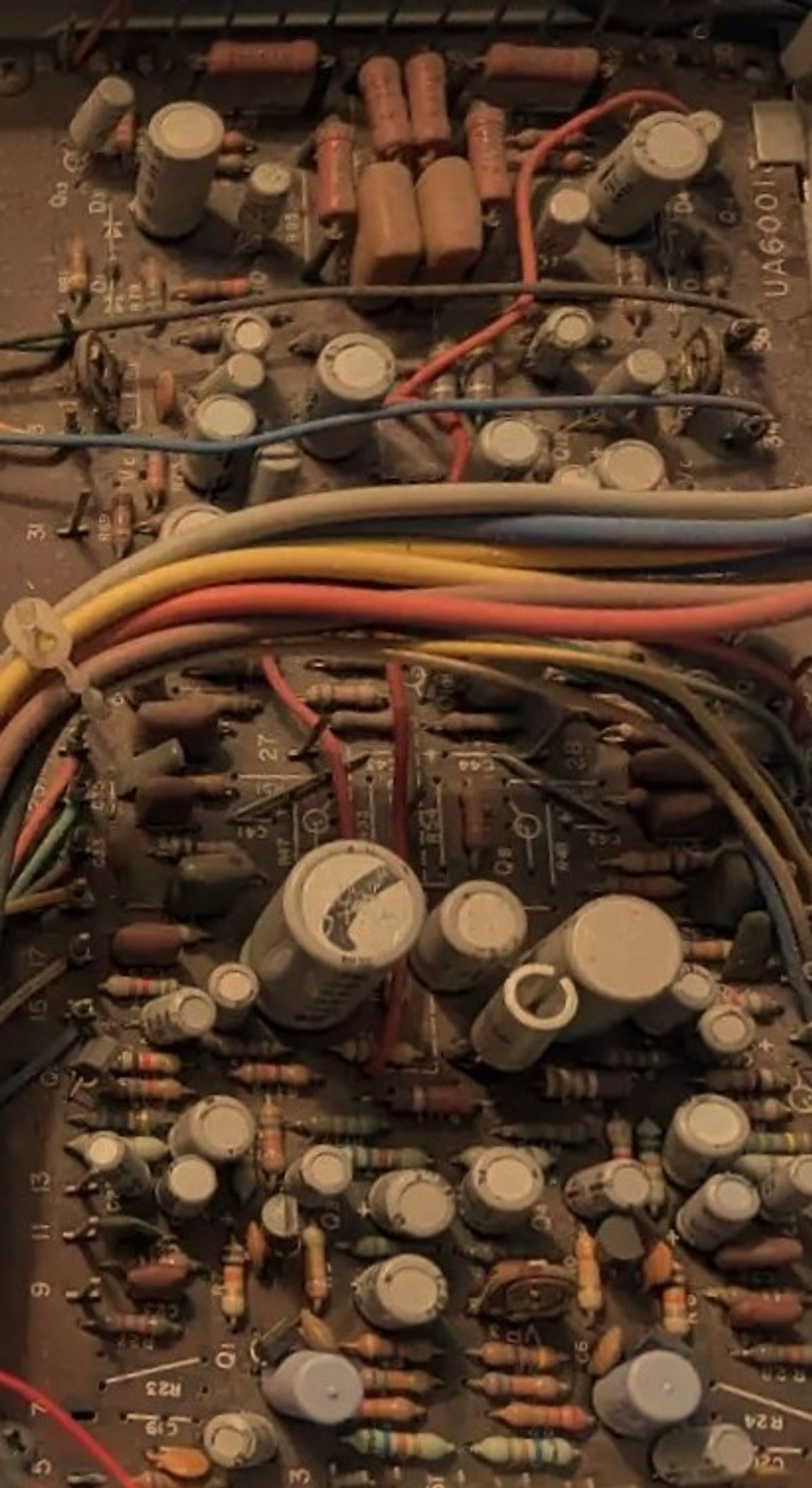

The interior told a familiar story. A fine even layer of dust on every horizontal surface. The PCBs had turned that deep reddish-brown that phenolic substrate develops over fifty years, which looks alarming if you have not seen it before but is entirely normal. The wiring harness had stiffened with age and taken a permanent set in its original routing.

What it did not show was any of the bad things. No burn marks anywhere on the boards. No capacitors with bulged or split tops. No moisture history — no mineral deposits, no corrosion following water flow paths. No evidence of previous repair attempts; the solder joints looked uniformly original, aged the same way. No rodents had made a home in here.

The wiring was intact in the original Kenwood color convention: red for positive supply, black for ground, yellow for secondary feeds, blue and white for the left and right audio channels. All original. All present.

The dirt was just dirt. The boards were not oxidized — they were simply covered in fifty years of accumulated household dust. This matters because dirt cleans. Damaged traces do not.

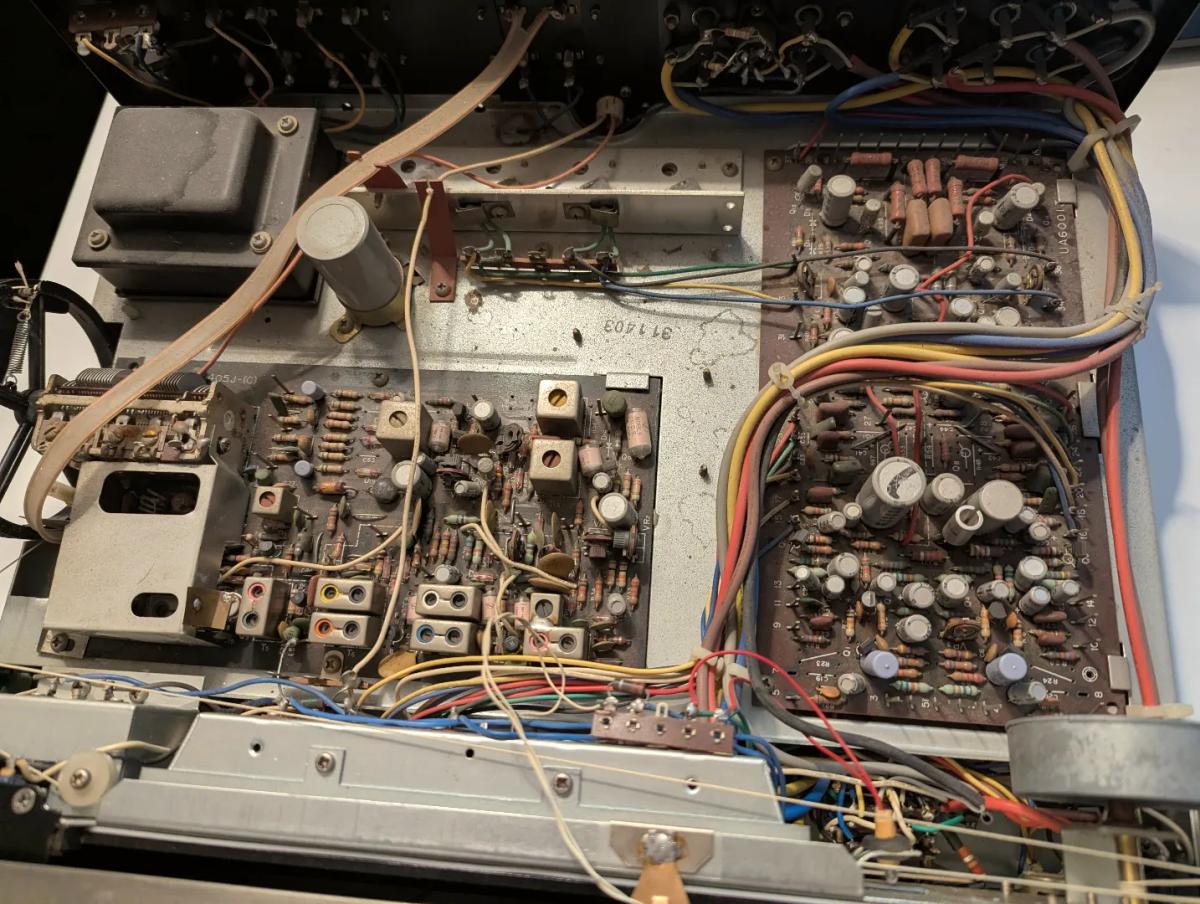

Identifying the Three Boards

We initially counted three boards from the top-down view and needed to confirm whether our count was right. The answer turned out to be: yes and no.

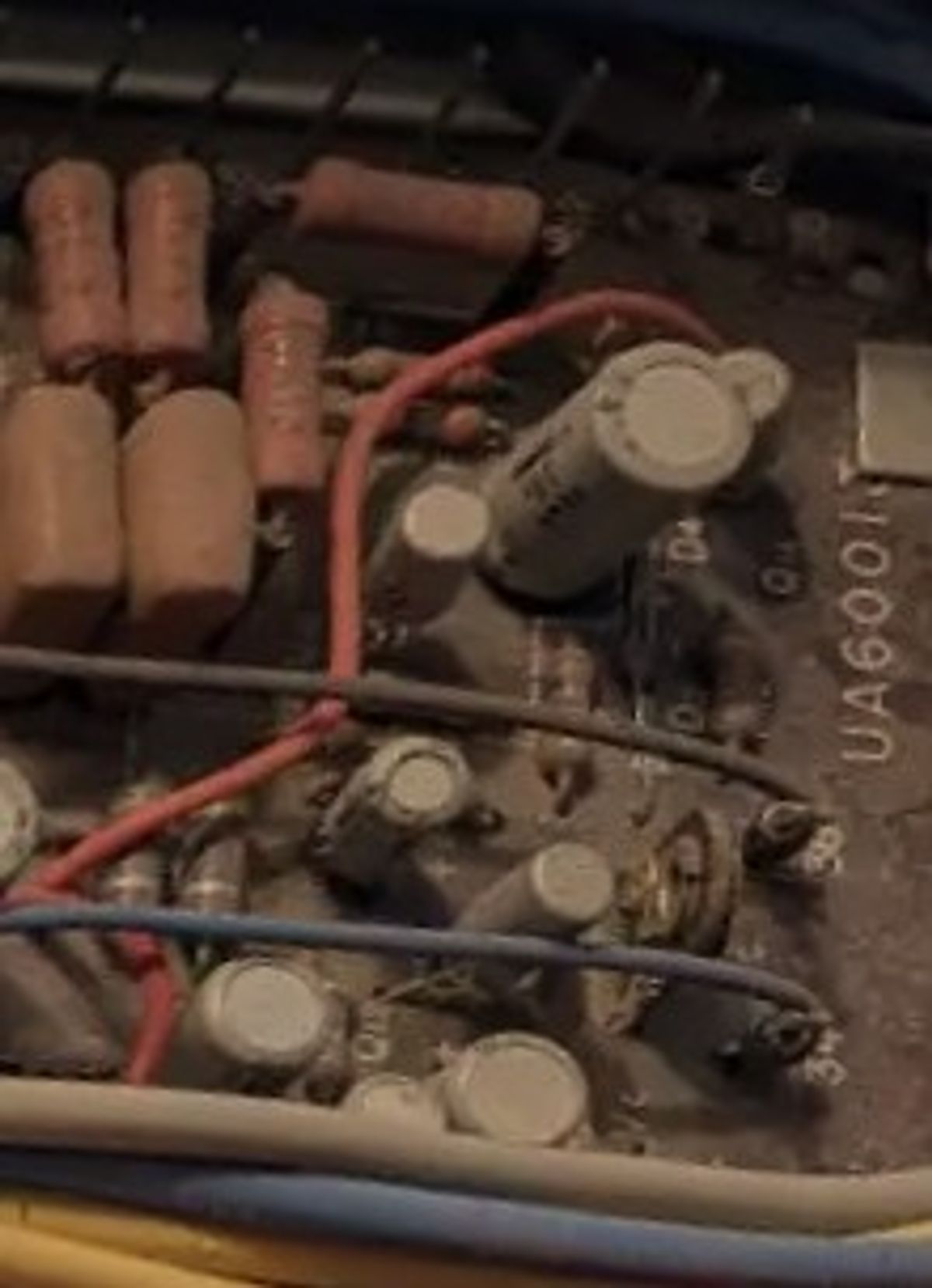

The right board is stamped UA600IJ — confirmed as UA6001J1 in the service manual, the Pre, Tone and Main board. This single PCB contains three complete circuit sections: the preamplifier, the tone control amplifier, and the main power amplifier output stage. In a higher-end receiver these would be three separate boards.

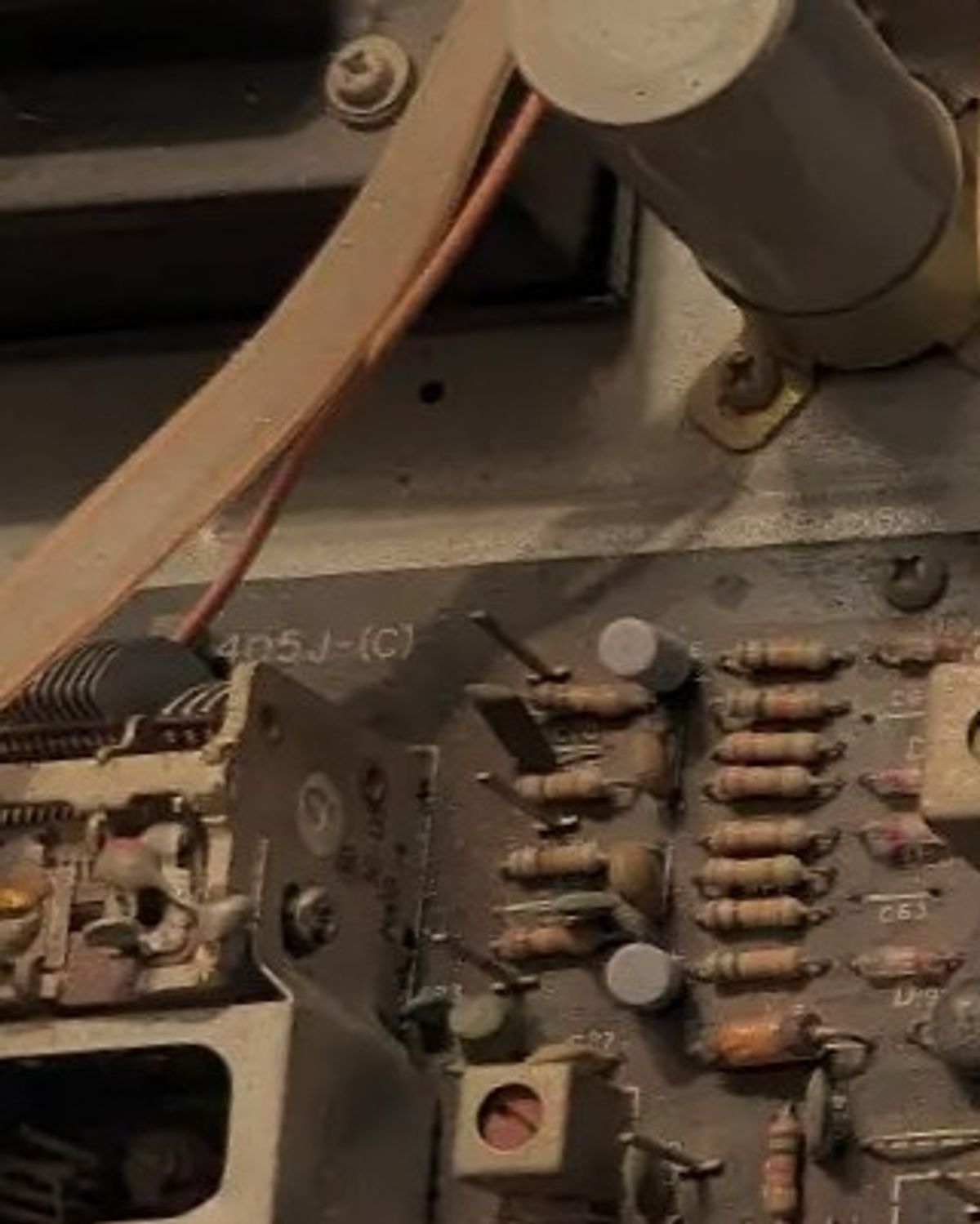

The board to the left is stamped UA5405J-(C) — confirmed as the Tuner board UA5406K3. This handles everything related to radio reception: FM front end, IF strip, multiplex decoder, stereo indicator.

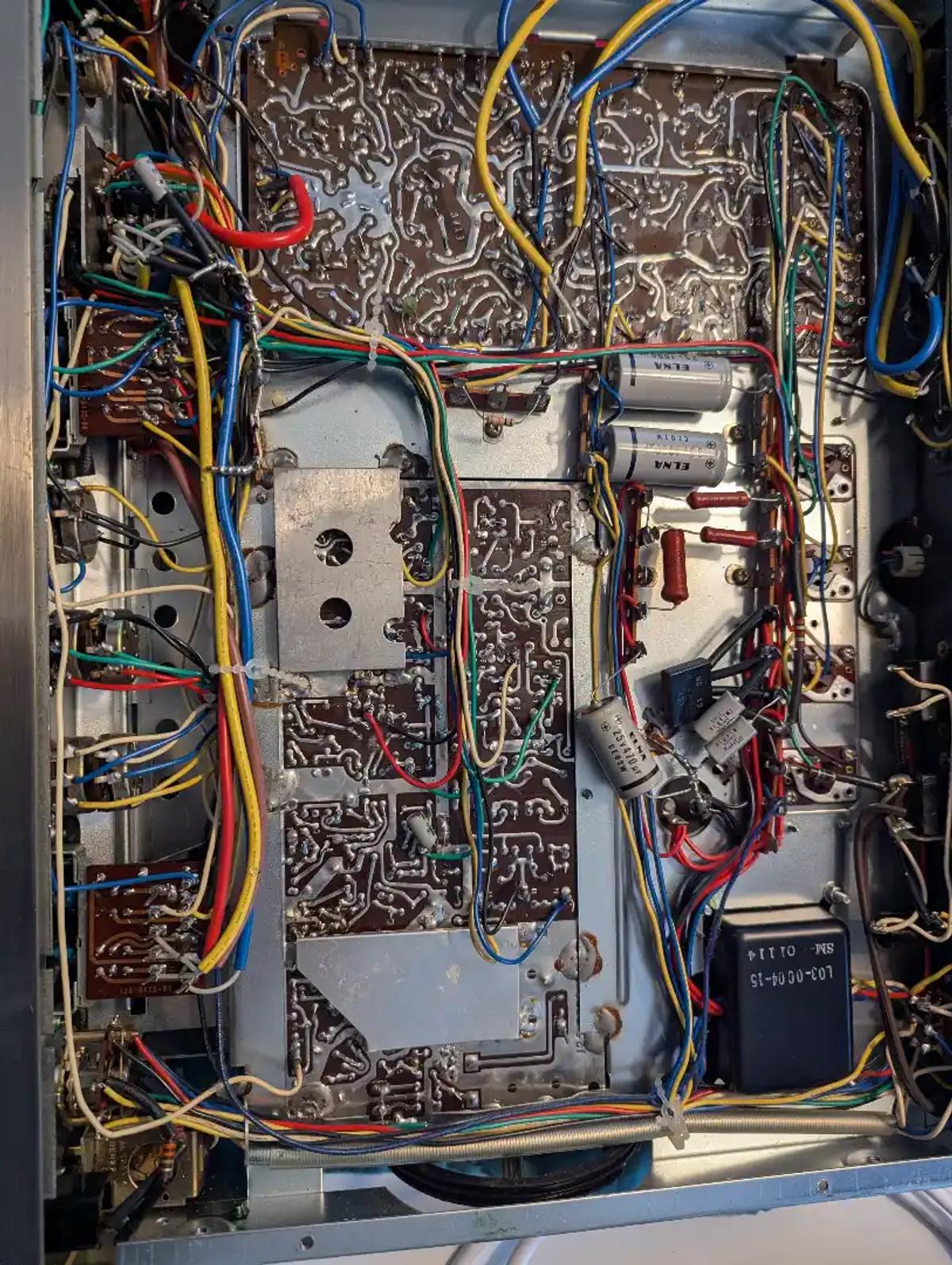

The power supply section is not a separate board. It is chassis-mounted point-to-point wiring. This includes the main filter capacitors, the output coupling capacitor, and the bridge rectifier. Some of these components are visible from the top. Others, as we discovered later, are only accessible from the bottom.

The Tall Grey Elna

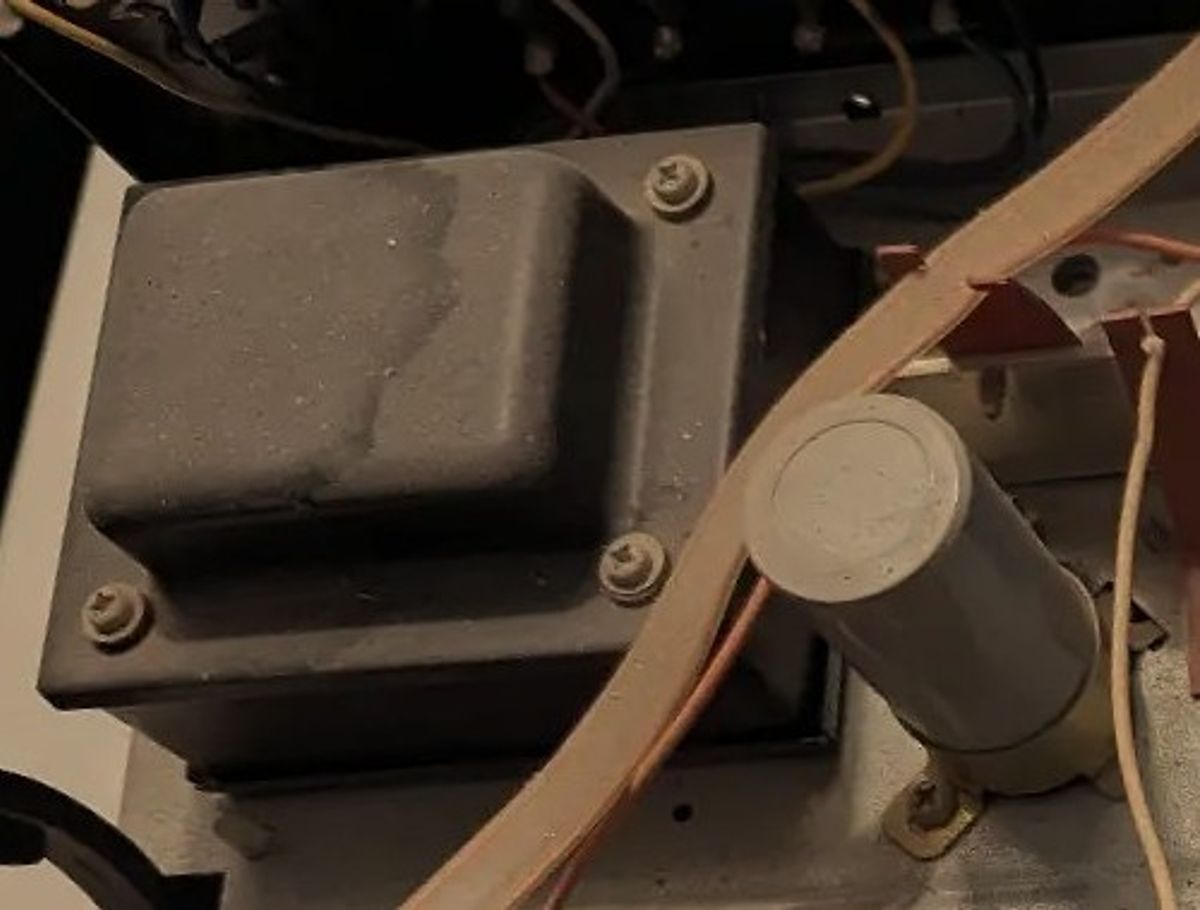

Standing above everything else on the chassis is a single tall grey electrolytic capacitor. We read it as: Elna CE-W 50V 1000µF, black stripe on the negative lead. This would later generate some confusion about whether there was one main filter cap or two.

There are two — C171 and C271 — but C271 lives on the bottom of the chassis and was invisible from our initial top-down inspection. The solo Elna visible from the top is C171 on the positive supply rail. Its twin waits underneath. This correction came later from the service manual.

PART 2

EXTERIOR CLEANING

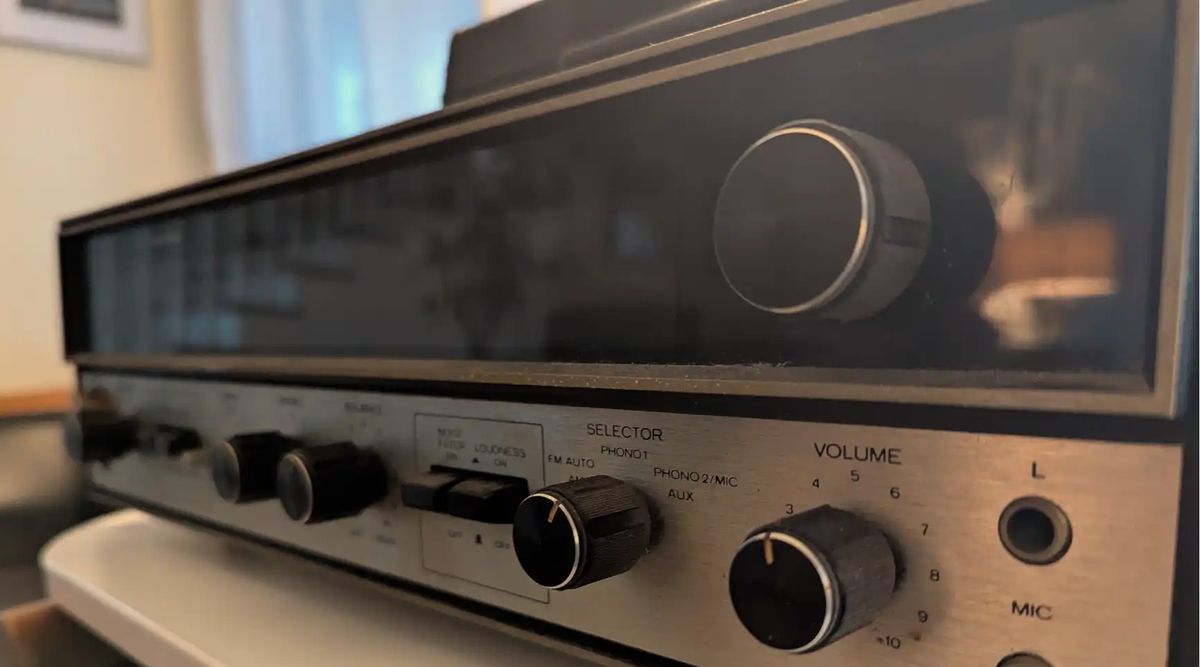

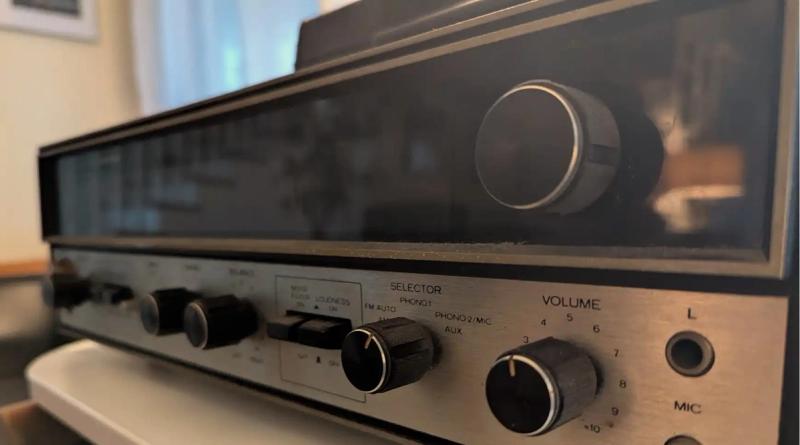

Before any electrical work began, we cleaned the exterior. The KR-3130 had the kind of grime on its faceplate that only accumulates over decades in a smoking household — worked deep into every groove of the engraved lettering and into every gap around the knobs.

Removing the Knobs

The black cylinder knobs on this unit pull straight off toward you. No threaded set screws, no hidden hex bolt — some receiver models have those, this one does not. Pull them off, clean them separately, set them aside. Much easier to get at the faceplate surface without them in the way.

Cleaning Method

For the exterior surfaces: 70% isopropyl alcohol and a rag in a well-ventilated area. The alcohol cuts through the grime effectively without affecting the painted lettering — but test any cleaning method in a less visible area first before committing to the whole faceplate. The lettering on this unit is screen-printed and survived the IPA treatment without issue.

A guitar pick or the edge of a plastic card works well for grime that has compacted into the engraved grooves. Never metal on painted aluminum — scratches are permanent. The plastic edge lifts the hardened residue without marking the surface.

Compressed air first, always. Blow loose material out of all the gaps before any liquid touches anything.

Note: We asked whether to clean the boards before electrical testing. The answer: no. Get the electrical baseline first in as-found condition, document it, then clean and recap. Cleaning before testing could disturb connections and make pre-existing conditions harder to distinguish from things you introduced.

PART 3

THE VARIAC BRING-UP

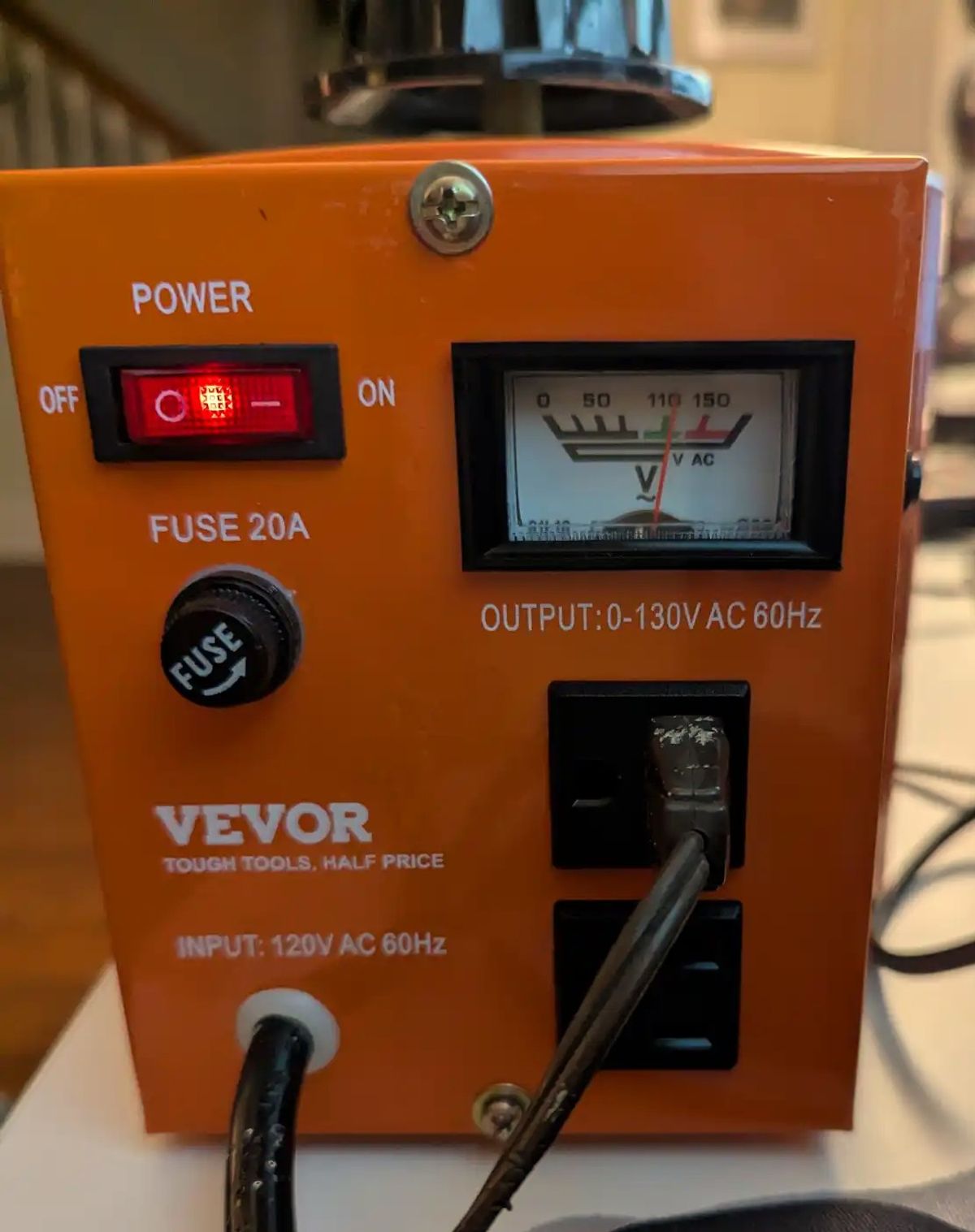

Why Not Just Plug It In

The answer is capacitors. The electrolytic capacitors inside a receiver that has been sitting for decades have had their internal oxide layer — the dielectric that makes them work — slowly degrade from lack of use. Apply full mains voltage suddenly to a receiver in this condition and you are gambling that those fifty-year-old caps can survive the instantaneous stress. Some can. Some cannot. The ones that cannot fail catastrophically, and a failing capacitor at full voltage can destroy other components that were otherwise perfectly serviceable.

The controlled bring-up applies voltage gradually, giving the capacitors time to reform their oxide layer incrementally. It is not glamorous work. It is mostly sitting and watching a multimeter. It works.

The Cover Question

We asked whether to have the cover on or off during the variac procedure. The answer involves a real tradeoff. With the cover off you can see the boards during bring-up — if a capacitor starts to vent you see it immediately. With the cover on there is a physical barrier between you and a live mains-connected chassis.

Our approach: cover off for the initial low-voltage steps where visual observation matters most. Cover on for sustained operation at higher voltages. The DMM leads were clipped in place before the cover went back on. Using the rear speaker leads we could be take measurements without accessing the interior while powered.

DMM Setup — What We Were Measuring

A digital multimeter clipped to the Channel A speaker terminals measures DC offset — any DC voltage present at the speaker output. In a correctly functioning amplifier this should be very close to zero. This is the single most informative measurement during a bring-up of a vintage solid-state amplifier.

A large DC offset at low voltage means a failed output transistor. A moderate offset that rises proportionally with supply voltage — the pattern we were hoping to see — means normal aging in the bias circuit. Knowing the difference before applying full power determines what comes next.

Speakers are not connected for testing. The DMM clips directly to the speaker binding posts. DC voltage on a speaker voice coil is damaging and happens fast.

What We Observed — Step by Step

We brought the KR-3130 up slowly. Here is what actually happened at each step.

Observed at 65V:

"We have built up slowly, now at 65V and we are at 0 on the multimeter. No lights have illuminated yet but every jump we hear new clicks as we apply more power."

The clicks are normal and reassuring — they indicate the speaker protection relay is alive and responding as the bias circuit settles. The zero reading on the multimeter at 65V means the offset is below the measurement threshold. No smoke, no smell, no events.

Observed moving up:

"We are seeing a slight increase on the multimeter. .012-.02"

0.012 to 0.020 volts. Very low. The first readable offset at this voltage level is entirely expected.

Observed at 100V:

"100v at .16-.175, no visible lights are visible. Though possible that they are burnt out."

Still no lights — the dials stayed dark throughout the entire bring-up. We flagged this for investigation. Not yet alarming — burned-out bulbs are far more likely than a circuit fault — but worth confirming.

Observed at 110-120V:

"Stable at .15-.165. What is our final voltage and for how long?"

Final target: 120 volts for a sustained soak — at least 30 minutes with continuous observation, ideally longer. Final reading at full voltage: 0.200 volts DC offset, stable.

Applied Voltage

DC Offset (Ch. A)

Observations

0–30V

Below threshold

No reading. No events. No smell.

65V

0.012–0.020V

First readable offset. Protection relay clicking normally.

80V

0.120V

Rising progressively — expected aging behavior.

100V

0.160–0.175V

Slight variation, stabilizing. Dials dark.

110V

0.180V

Nearly stable. No issues.

120V (full)

0.200V stable

Stable. No smoke. No smell. No blown fuse.

What the Results Meant

No smoke. No blown fuse. No unusual smell. No runaway offset. The DC offset stabilized at 200 millivolts — elevated compared to the service manual specification of under 50 millivolts after a proper bias adjustment, but entirely consistent with a 50-year-old unit that has never been recapped and whose bias trim potentiometer has drifted from its factory setting.

A failed output transistor would have produced several volts of DC offset, not 200 millivolts. The progressive rise proportional to supply voltage is the normal aging pattern. The output stage is functional. It needs work but it is not failed.

The protection relay engaged normally throughout — heard as the clicks at each step. That means the protection circuit is working. The power transformer delivered all secondary voltages correctly. The unit survived the bring-up without incident.

Post-Recap Voltage Targets:Q1 and Q4 collector to chassis: ~47V each. Q2 and Q3 collector to chassis: ~23V each. These are the verification checkpoints from service manual page 8 before speakers are connected post-restoration.

📷PHOTO: Unit at operating voltage with cover on — DMM leads exiting through rear panel, readings taken without interior access

PART 4

THE LAMP MYSTERY SOLVED

The Question

With the bring-up complete and all the dials still dark, we asked the obvious question: is it weird that all the lights are non-functional? And can we actually test the voltage at the lamp sockets to confirm whether the lamp circuit itself is alive?

The lamp supply in the KR-3130 comes from a dedicated winding on the power transformer — a separate secondary winding that provides AC voltage to run the lamps independently of the audio supply rails. If this winding were open, the lamps could not be lit by any means. A transformer wound for a 1971 Japanese receiver is not rewound. It gets replaced, and replacements for this model do not exist. If the winding had been open, the restoration would have ended right there.

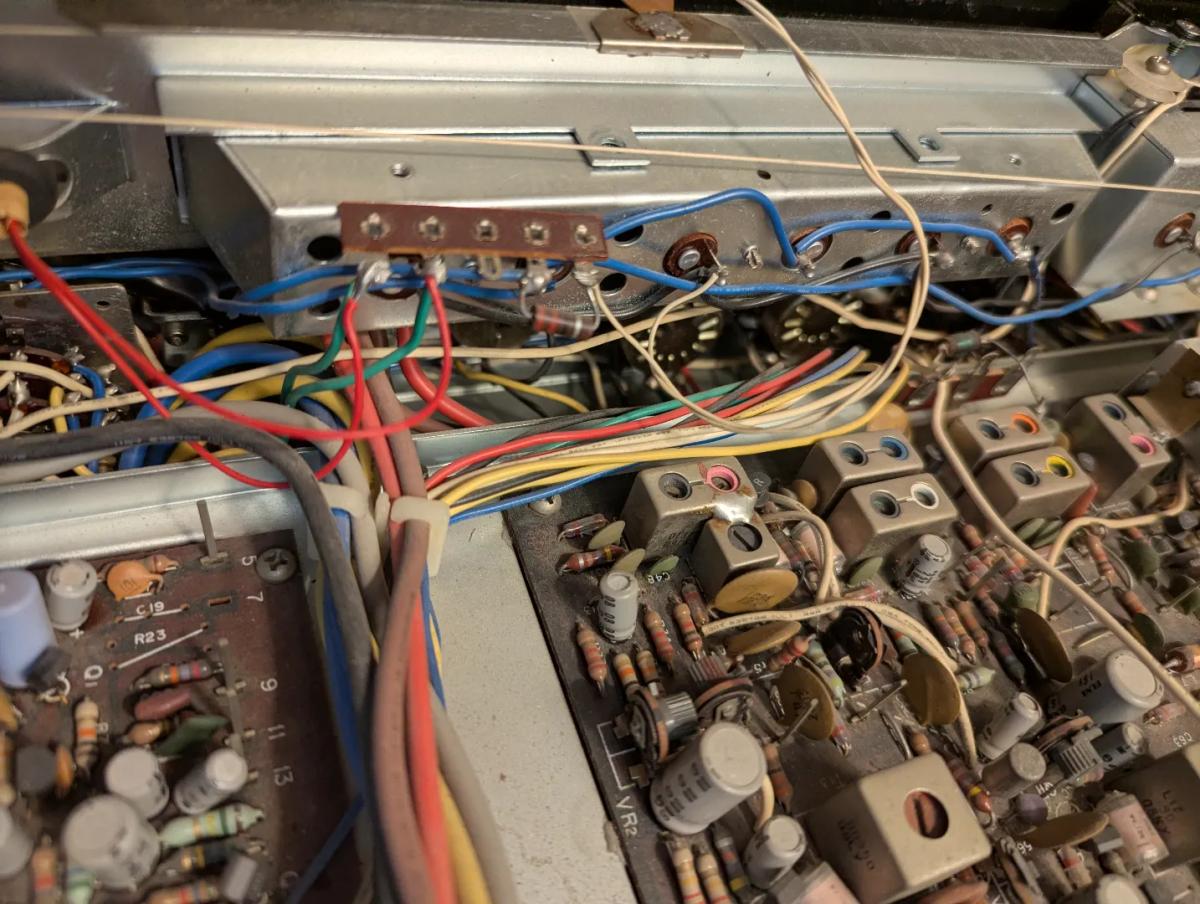

The lamp sockets are accessible with the DMM set to AC voltage. They run on alternating current directly from the transformer winding.

The Measurement

Position

Reading

Interpretation

Main dial sockets

8.49V AC

Open-circuit. Within normal range. Transformer winding intact.

Tuner dial (under load)

5.67V AC

Surviving bulb drawing current — voltage drop is normal behavior.

Confirmed:

"We get about 8.49v to the bulb sockets, 5.67 to the bulb on the tuner dial. This does illuminate."

The lamp transformer winding is intact. The lamp circuit is alive. The dials are dark because the bulbs have failed — not because the circuit has failed. The distinction matters enormously.

The One Surviving Bulb

Of all the dial lamp positions in the KR-3130, exactly one original bulb from 1971 survived in working condition. It sits in the tuner dial position and was glowing — dimly but steadily — during the bring-up. This confirms the lamp circuit can drive a load. The other positions are simply end-of-life bulb failures after fifty years.

The survival of any 1971 incandescent lamp to 2026 is remarkable. Standard lamps of this type are rated for a few hundred to a few thousand hours. That this one made it suggests the receiver was not used heavily during its operational life — consistent with the otherwise clean interior.

We will replace this bulb along with all the others. A single original incandescent lamp among LED conversions would fail within a few hundred hours of use after the restoration. It goes now.

The LED Conversion Plan

The lamp positions are AC-fed at 8.49 volts. LEDs are DC devices. Wiring a single LED directly into an AC socket produces a flickering lamp that conducts on only one half of each cycle.

The solution: two LEDs wired anti-parallel — one conducts on the positive half-cycle, the other on the negative. Both illuminate at 60 times per second, which persistence of vision smooths into steady light. A 220-ohm series resistor limits current appropriately for the 8.49-volt supply. The assembly drops into the existing rubber grommet boots that held the original bulbs.

Yellow diffused 5mm LEDs rather than white. The original incandescent lamps ran at 2400–2700 Kelvin — warm amber. A white LED at 5000K looks strikingly clinical against a dial face designed for warm incandescent light. The Kingbright WP7113SYD yellow diffused type reads warm through the dial material and is far more sympathetic to the original aesthetic.To replace the left tuner strength meter lamp, we will need to remove the front plate. This is held on by two screws on the sides (under the exterior cover) and behind the knobs you should find 2-3 nuts holding the face plate to the knob locations. Unscrew all of these and the plate should come free. We will clean thoroughly before replacing.

PART 5

READING THE BOARDS

With the unit confirmed as a viable restoration candidate, we started working through the capacitors visible from the top — reading values off the component bodies before ordering parts. This process taught us several things about the limits of physical inspection.

The Purple Caps — A Good Start

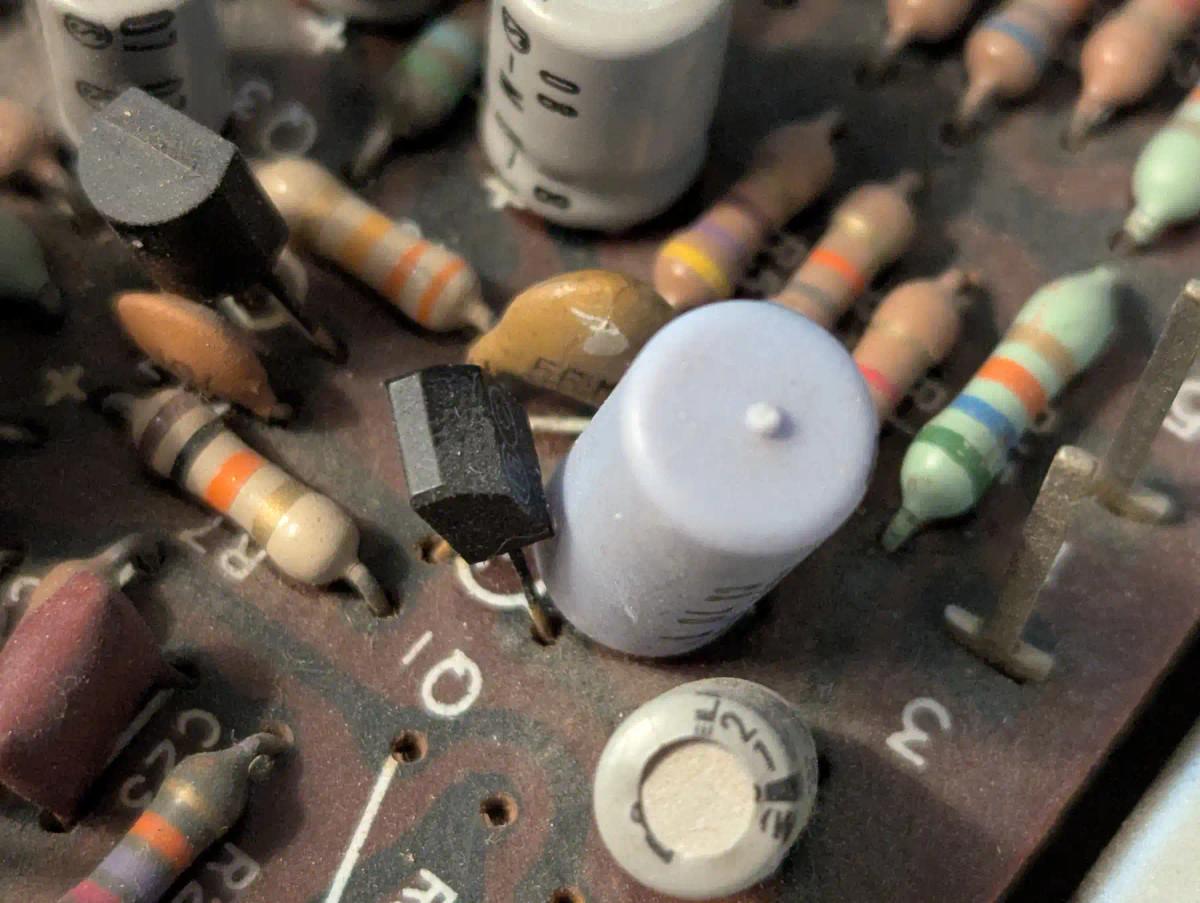

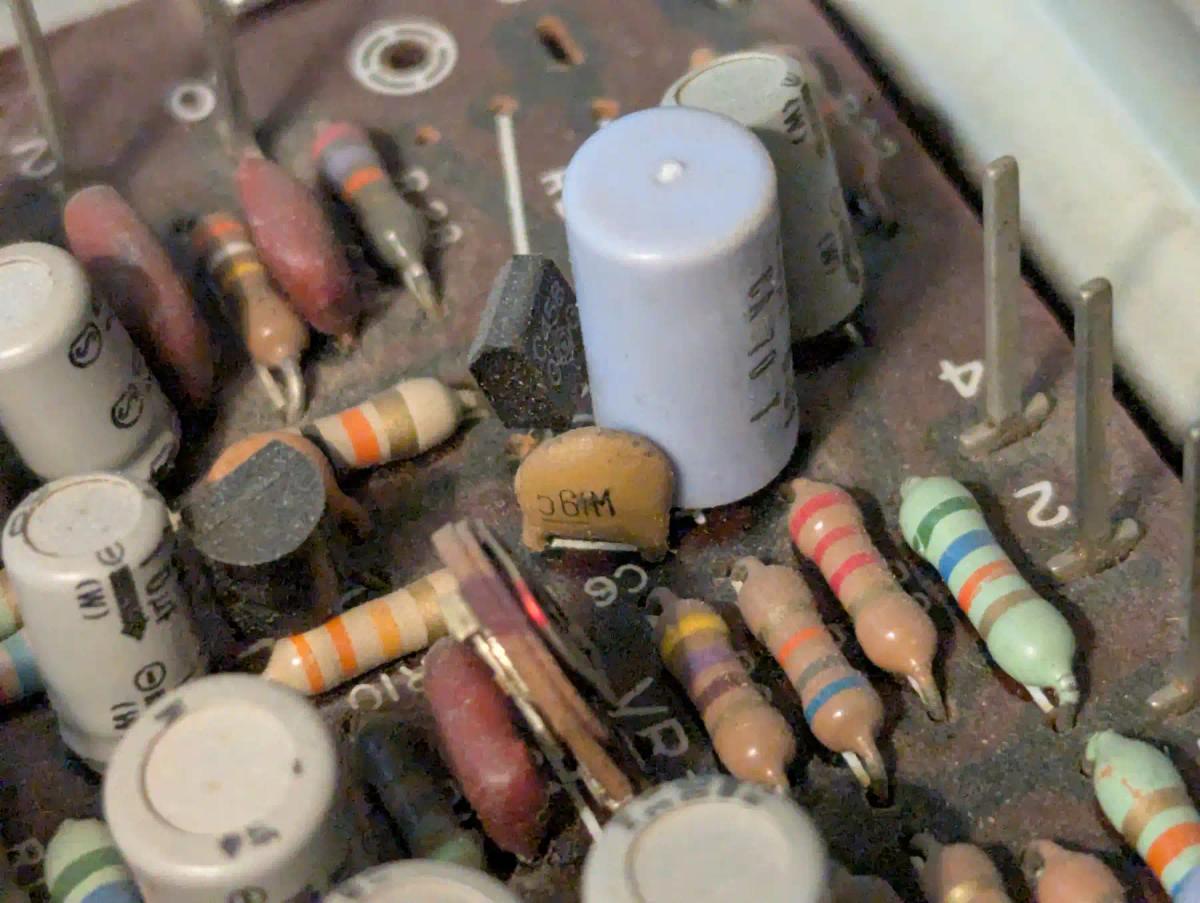

The first caps we found were a pair of tall purple capacitors, tight against the front panel and difficult to access without desoldering. We managed to read them as 3.3µF 6.3V. The service manual later confirmed: Ce1 and Ce2, solid aluminum type, 3.3µF 6.3WV. Physical read matched perfectly. Replace with 3.3µF 16V for voltage margin.

The Wedged Cap — First Correction

Adjacent to the purple caps, a cap wedged tightly against its neighbor. We could make out a marking that started with what looked like 5 — possibly 56µF. The voltage was not printed on the body at all, which was common practice for small-value caps of this era.

We debated ordering 47µF and 68µF as bracket candidates. The eventual answer from the service manual: Ce47 and Ce48 are 470µF at 6.3WV, confirmed by Kenwood part number CE04W0J471. The leading digit — the 4 in 470 — was obscured by grime. We were reading the 70 as potentially 56. This is exactly the kind of error that physical-read-only approaches generate.

The Solo Elna — Second Correction

We spent time debating whether the tall Elna visible from the top was the only main filter cap or whether a second existed. The answer from the service manual: both C171 and C271 are 1000µF 35WV. C271 is chassis-mounted on the bottom. We could not see it from the top, which is why we assumed the Elna was alone. It is not.

Missing one of the two main filter caps in a restoration means leaving a fifty-year-old capacitor on the critical supply rail. The chassis bottom view on service manual page 7 makes both positions clear.

PART 6

THE SERVICE MANUAL CHANGES EVERYTHING

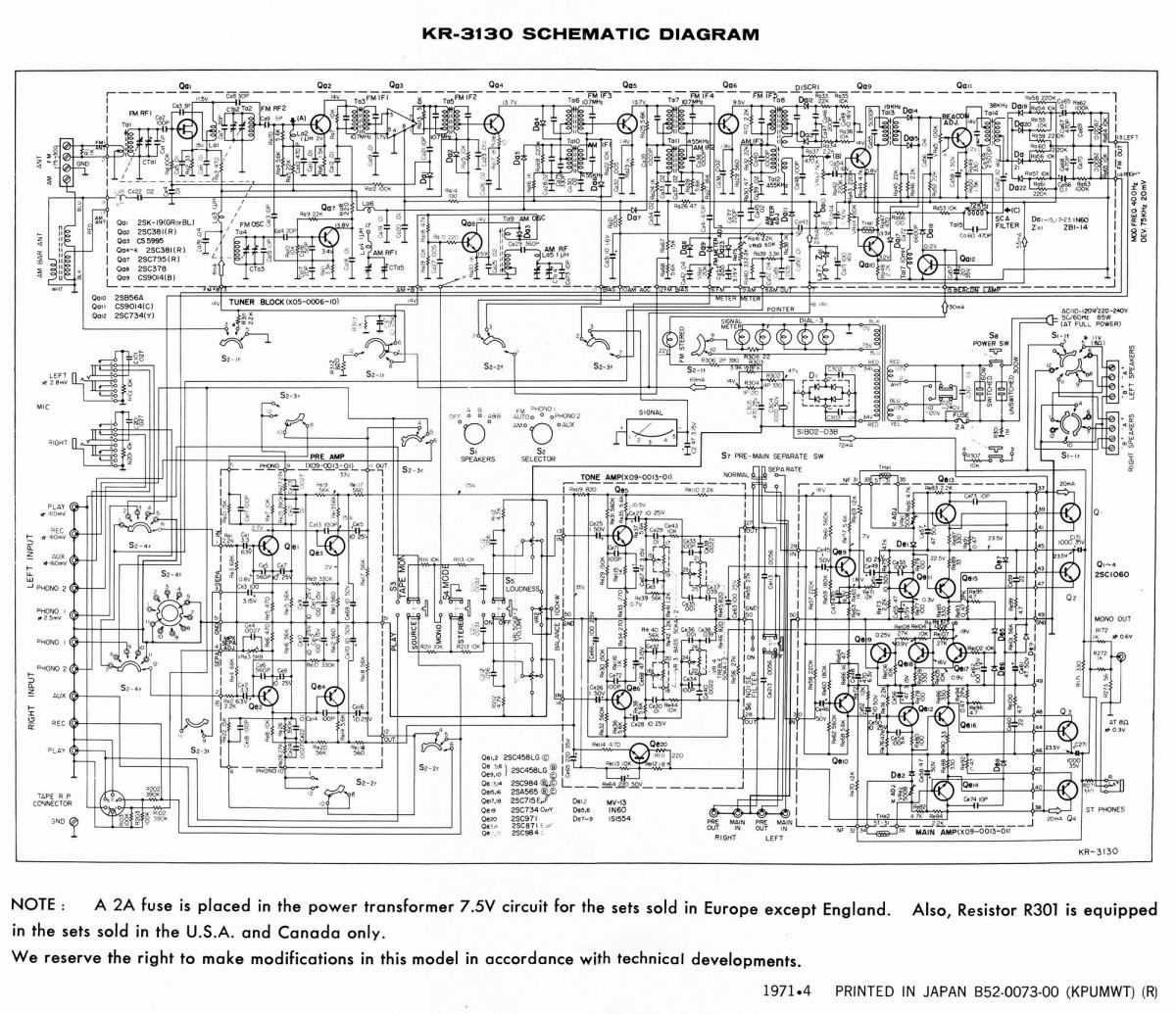

The service manual for the KR-3130 is a 19-page document available through the AudioKarma database. Reading it against our physical inspection notes produced five significant corrections to the parts list we had been building.

Five Corrections — One at a Time

1. Two Main Filter Caps, Not One

The service manual lists C171 and C271, both 1000µF 35WV. C271 is bottom access only. We had assumed one cap because we could see one cap. Missing this in a restoration means leaving a fifty-year-old cap on the critical negative supply rail.

2. Ce47 and Ce48 Are 470µF — Not 56µF

Service manual part number CE04W0J471 confirms 470µF 6.3WV. The physical read appeared to start with 5 because the leading 4 in 470 was obscured by grime. 56µF versus 470µF is a factor of roughly eight in capacitance. A significant error that would have resulted in ordering completely wrong parts.

3. All Four Output Transistors Are NPN — No PNP Complement

Q1, Q2, Q3, Q4 are all 2SC1060 NPN. The quasi-complementary topology uses four NPN transistors driven in a specific arrangement that provides push-pull capability without a matched PNP pair. An earlier version of our parts list had incorrectly included PNP output transistors. The service manual corrected this unambiguously.

4. C304 Is a Chassis-Mounted Output Coupling Cap — 1000µF 50WV

This capacitor sits in series between the amplifier output and the speaker terminals. It was not visible during top-down inspection and did not appear in the physical-read list. If it leaks, DC reaches the speakers. It is critical and it is on the bottom of the chassis.

5. C305 Is a Separate 470µF 25WV Cap Adjacent to C304

Also chassis-mounted bottom access. Also invisible from the top. Also absent from the physical-read list until the service manual was consulted.

📷PHOTO: Service manual parts description list pages — the authoritative source for every component value and OEM part number

📷PHOTO: Chassis bottom view from service manual page 7 — C304, C305, C271, Q1–Q4 positions labeled

Understanding the Reference Designator Notation

The service manual uses a consistent notation that must be understood to order correct quantities.

Notation

Meaning

Example

Components Needed

Comma between refs

Two separate components

Ce1,2

2 caps — Ce1 AND Ce2

Tilde between refs

Range of components

Ce7~10

4 caps — Ce7, Ce8, Ce9, Ce10

Single designator

One component

Ce61

1 cap

What to Replace, What to Leave Alone

Replace all electrolytics. Every electrolytic capacitor on all three boards and in the main chassis, regardless of visible condition. Internal degradation — reduced capacitance, elevated ESR, increased leakage — is invisible from the outside. Replacing all electrolytics is the only way to restore the circuit to its intended performance.

Skip non-electrolytics. Ceramic, mylar, polystyrene film, and oil-impregnated types do not age the same way. The oil-impregnated caps in the power supply — C301, C302, C303 — should only be disturbed if testing confirms they have failed. In the parts list, all non-electrolytic caps are marked Skip with grey rows and no order number.

The Transistor Research

Original Part

Position

Modern Sub

Notes

2SC1060

Q1~Q4 output (all 4)

TIP41C

NPN TO-220. All four outputs same part. Quasi-complementary topology.

2SC458LG

Qe1-6, Qe9-10 preamp

2SC2240

Notorious aging/crackling transistor. Replace all proactively.

2SC715(E or F)

Qe17,18 driver

2SC2240

Driver stage NPN.

2SC984

Qe11-14 preamp

2SC2240

Additional preamp NPN positions.

2SA565

Qe15,16 driver/preamp

KSA1013YBU

PNP positions — different sub required.

SM-150-005

De1-4, De7-9 signal

1N4148

Signal diodes throughout.

1N60

De5,6 AM detector

1N60 ONLY

Germanium — never substitute silicon.

Tuner board transistors are not replaced unless fault in the tuner is confirmed by listening tests after the recap. Replacing them correctly requires full tuner alignment afterward, which requires specific RF test equipment.

The Parts List

The complete verified parts list from the service manual is available as a downloadable Excel spreadsheet. Every capacitor line includes the original Kenwood OEM part number, the service manual reference designator, original value and voltage, replacement voltage selected for margin, explicit quantity count, selected replacement component, and Mouser part number. The Mouser order tab consolidates everything into a single cart with install count and spare count per line.

Total for the complete restoration — all caps across three boards and the main chassis, all transistor and diode replacements, LED lamp components, board cleaning supplies, hook-up wire in all required gauges and colors — approximately $138 shipped from a single Mouser order.

PART 7

BOARD CLEANING AND DISCHARGE

Discharging Before Any Work

Before touching anything on the boards or chassis components, the main filter capacitors must be discharged. C171 and C271 hold the DC supply voltage after the unit is unplugged. At full charge they store enough energy at 35–45 volts to cause injury.

Procedure: unplug from the variac. Wait five minutes minimum. The bleeder resistors in the circuit discharge the caps through their normal circuit paths. After five minutes, place the DMM across C171 and confirm under 1 volt before touching anything in the power supply area. Also check C304 before working near the speaker output wiring area.

Note:The small-signal caps throughout the preamp and tone sections — 3.3µF, 10µF values — discharge essentially instantly through circuit resistance once the supply is removed. They are not a concern. The filter caps are the ones that matter.

The Cleaning Sequence

• Compressed air — first pass to clear loose debris. Short directed bursts, never invert the can, work away from components.
• 90% isopropyl alcohol and a soft PCB brush — natural bristle, insulated handle — to clean board surface. 90% minimum, never 70% on PCBs.
• Photograph every section before desoldering anything. Close-up photos of cap clusters capture polarity orientation before it is lost.
• Desolder one cap at a time. Read the value off the body before discarding. Confirm against service manual. Install correct replacement immediately. Do not remove a second cap before the first is replaced.
• MG Chemicals 835 flux remover after each board section. Apply, 30-second dwell, gentle brush, lint-free wipe.
• Final IPA wipe. Minimum two hours dry time before any power. Overnight is better.

Pad Care on 1971 Boards

PCB pads on a 1971 board are fragile. The traces are thin, the pad adhesion to the substrate has weakened over fifty years, and a pad that lifts does not lie back down. Use minimum heat time during desoldering. Solder wick with flux pen is gentler than a solder sucker on these pads. Never apply mechanical force to a component before the solder is fully molten — this is the primary cause of lifted pads on vintage boards.

If a pad does lift: a short jumper wire from the component lead to the nearest accessible point on that trace restores continuity cleanly and is a legitimate repair on boards of this age.

PART 8

HOW IT ENDS — FOR NOW

The Current State

The KR-3130 produces sound. Both channels. This was the first discovery after the bring-up and it is not nothing — a receiver that survived fifty years, an unknown storage history, and the stress of a controlled bring-up, and still has two functional audio channels is a better starting point than many vintage units offer.

What Works:Both channels produce audio. Speaker protection relay engages normally. FM and AM reception functioning. Power transformer intact in all windings. Supply rails coming up correctly.

What Needs Work:Pots crackle on every rotary control. Only one dial lamp works — one original 1971 incandescent survivor. DC offset at 200mV needs bias adjustment after recap.

The Pots

Every rotary control — volume, bass, treble, balance — produces noise when turned. Crackling, scratchy, intermittent. This is the 2SC458LG problem made audible: aged transistors and oxidized potentiometer contacts working together. DeOxit D5 treatment on all controls and a full transistor replacement addresses this. It is expected and it is fixable.

The Lights

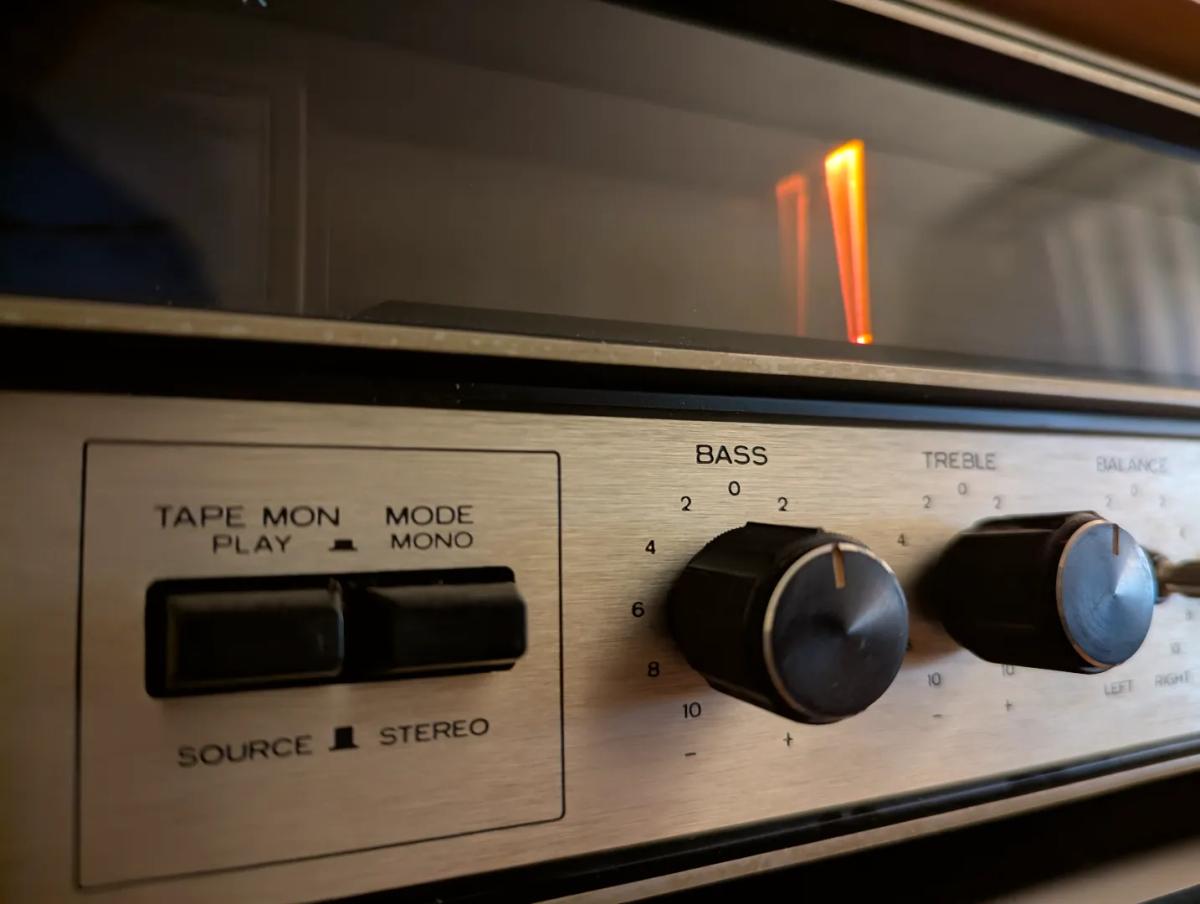

One original 1971 incandescent bulb survives in the tuner dial position. Every other position is dark. The lamp circuit itself is healthy — 8.49 volts AC confirmed at the sockets. The LED anti-parallel conversion with 220-ohm series resistors goes in during the recap. The dial will be evenly illuminated in warm yellow when this is done.

The Honest Accounting

Twenty dollars for the receiver. Approximately $138 for the parts order. Multiple sessions of investigation, documentation, research, and cleaning before a single capacitor was desoldered.

Five dollars would have been the right price.

We are suckers for vintage audio, and the math only confirms it in retrospect. The KR-3130 is not a rare or valuable receiver — it sits at the entry level of the 1971 Kenwood KR lineup and was never going to be worth more than a modest restoration budget in parts alone.

What it is, is interesting. A complete and authentic example of how a Japanese audio company built a receiver in 1971: with real engineering care, appropriate component selection, and the assumption that it might be serviced and used for decades. The quasi-complementary output stage using four matched NPN transistors. The thermistor-based temperature compensation on the bias circuit. The RIAA-correct phono preamplifier. This was not a throwaway product. It was built to be fixed.

The fact that it cost more in parts than in purchase price is simply the nature of vintage audio restoration done properly. You do not restore a $20 junk receiver because it is financially rational. You do it because the receiver deserves to work, and because the work itself is interesting.

What Comes Next

The recap happens next — desoldering every electrolytic on all three boards and the main chassis, one at a time, reading each value as it comes off, installing the correct Nichicon replacement, board by board. The LED conversion happens simultaneously. The bias adjustment via VRe3 and verification against the service manual's supply rail voltage targets comes after the recap is complete and the new capacitors have had time to settle. A second variac bring-up post-recap confirms the work before speakers are connected for the first time.

At the end of all of it, there will be a Kenwood KR-3130 from 1971 that works correctly, has fresh capacitors good for another twenty-five to thirty years, LED dial lamps that will outlive everyone who owns the receiver, and properly calibrated bias. The pots will be quiet. The dials will be lit. It will be the thing it was designed to be.

For twenty dollars and $138 in parts and whatever the final time turns out to be. Vintage audio math.

This document records our personal restoration journey for archival and educational purposes only. It is not instruction for others. All work on vintage electronics must be performed only by qualified professionals. We accept no responsibility for any outcome arising from any attempt to replicate what is described here.

transfertunes.com·Vintage Audio Restoration·March 2026
