When setting up a home audio system, the sheer number of cables can be overwhelming. You see shiny, thick cables labeled "XLR" and standard, smaller cables labeled "RCA." Do you need to buy the expensive ones? The short answer is: It depends on your system and your ears.

The Core Concept: Balanced vs. Unbalanced

To understand the difference, we need to look at how the signal travels.

RCA (Unbalanced): Uses two conductors (Signal and Ground). It is susceptible to electromagnetic interference (noise) from power cables or Wi-Fi routers.
XLR (Balanced): Uses three conductors (Signal, Inverted Signal, and Ground). The receiver reverses the signal, canceling out any noise picked up along the way.

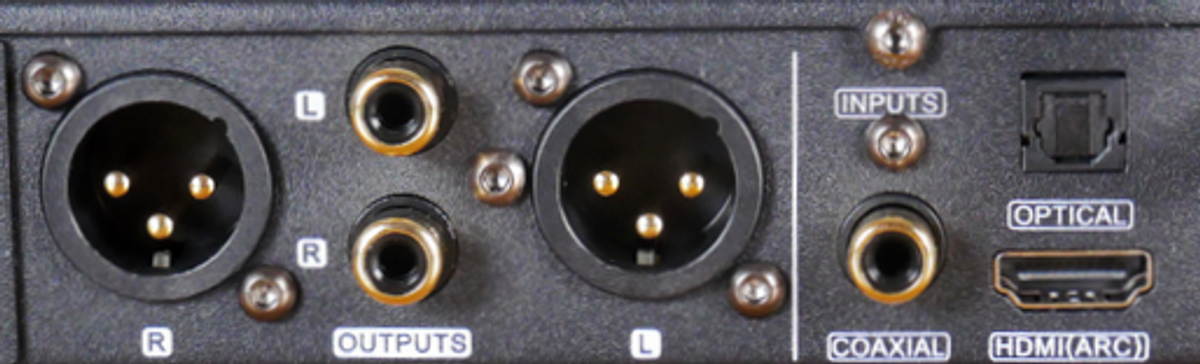

Rear connectons on an SMSL DO100 dac showing the RCA, Balanced, coaxial, optical and hdmi ports — You should chose the best port that you have available across your devices.

Why It Matters-

RCA is fine for: Consumer electronics like CD players, turntables, and most modern receivers. It is the standard for home theater systems.
XLR is preferred for: Professional setups, high-end audiophile systems, and long cable runs (over 15-20 feet). If you are running cables through walls or near power strips, XLR will offer a cleaner signal.

Step-by-Step Guide

Check your gear: Look at the back of your amplifier and source device. Do they have XLR inputs?
The Signal Path: Connect the source (CD Player) to the receiver using the cable type available.
The Upgrade Path: If you have XLR inputs on both ends, use XLR cables. They provide a more robust connection and reduce noise.

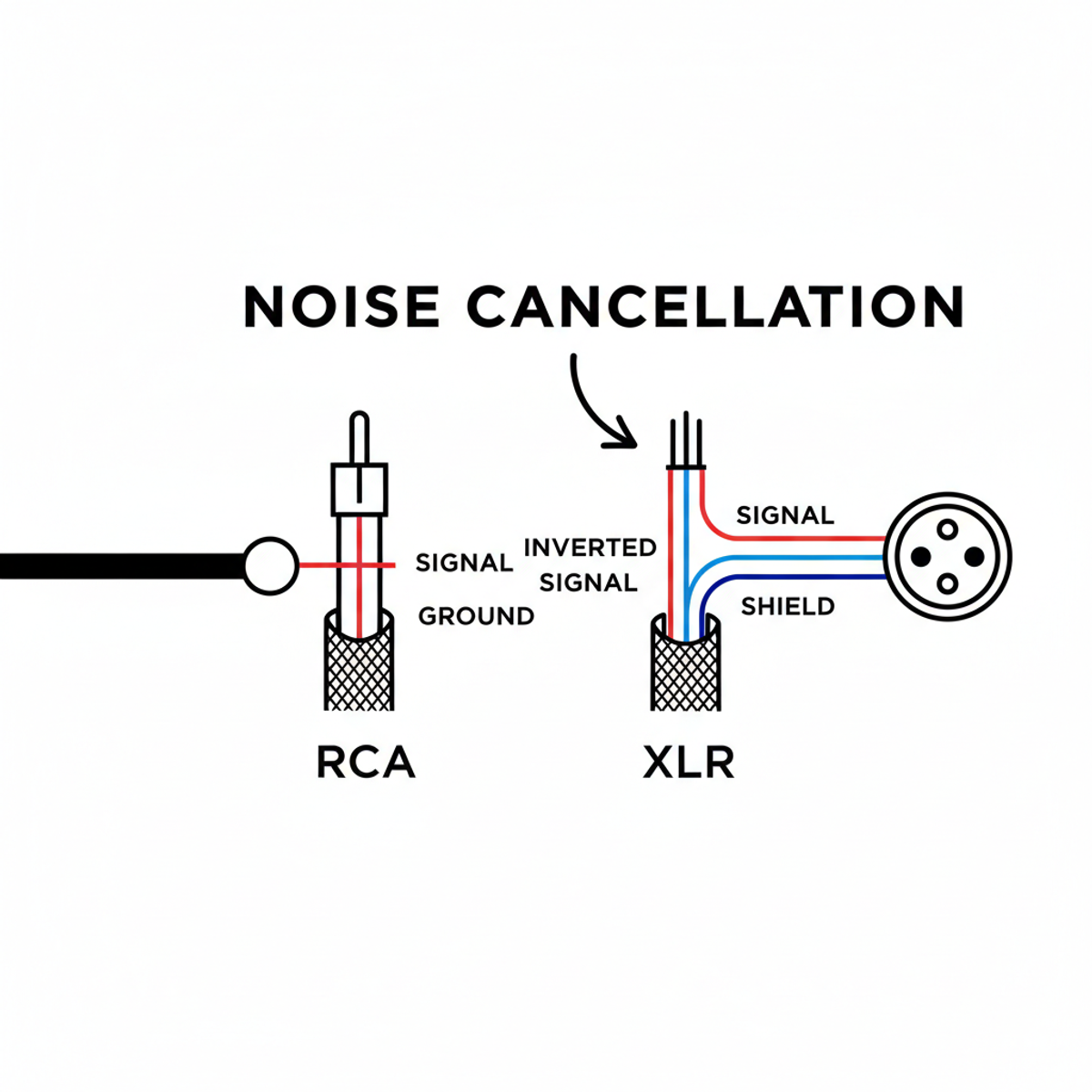

RCA vs XLR sheilding and grounding diagram — Signal inversion adds to the noise cancelation

Conclusion

For most home users, high-quality RCA cables are perfectly sufficient. However, if you are building a high-end system or running long cables, investing in XLR cables is a wise choice for signal integrity.
